Mind Patterning

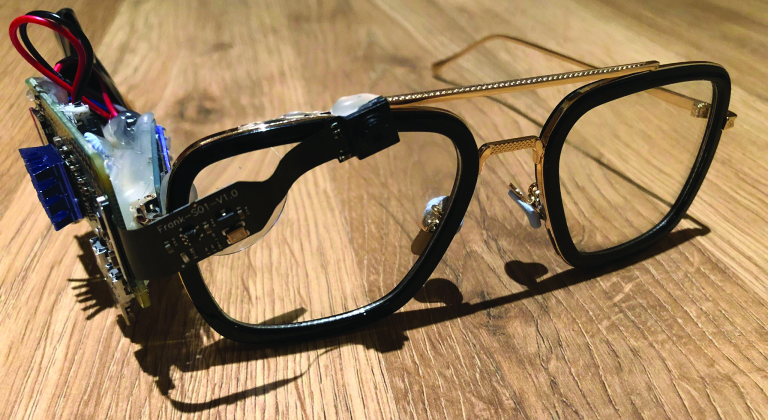

Since then he’s made several Raspberry Pi projects, including Spider-Man specs – hence his profile pic. His Mind Patterning headset is intended “to kick off a much larger project using mind-reading capabilities.”

The project reads brainwave data with a MUSE headband and uses TensorFlow machine learning to train a model on the data to recognise a relaxed or non-relaxed mind state.

Mind over matter

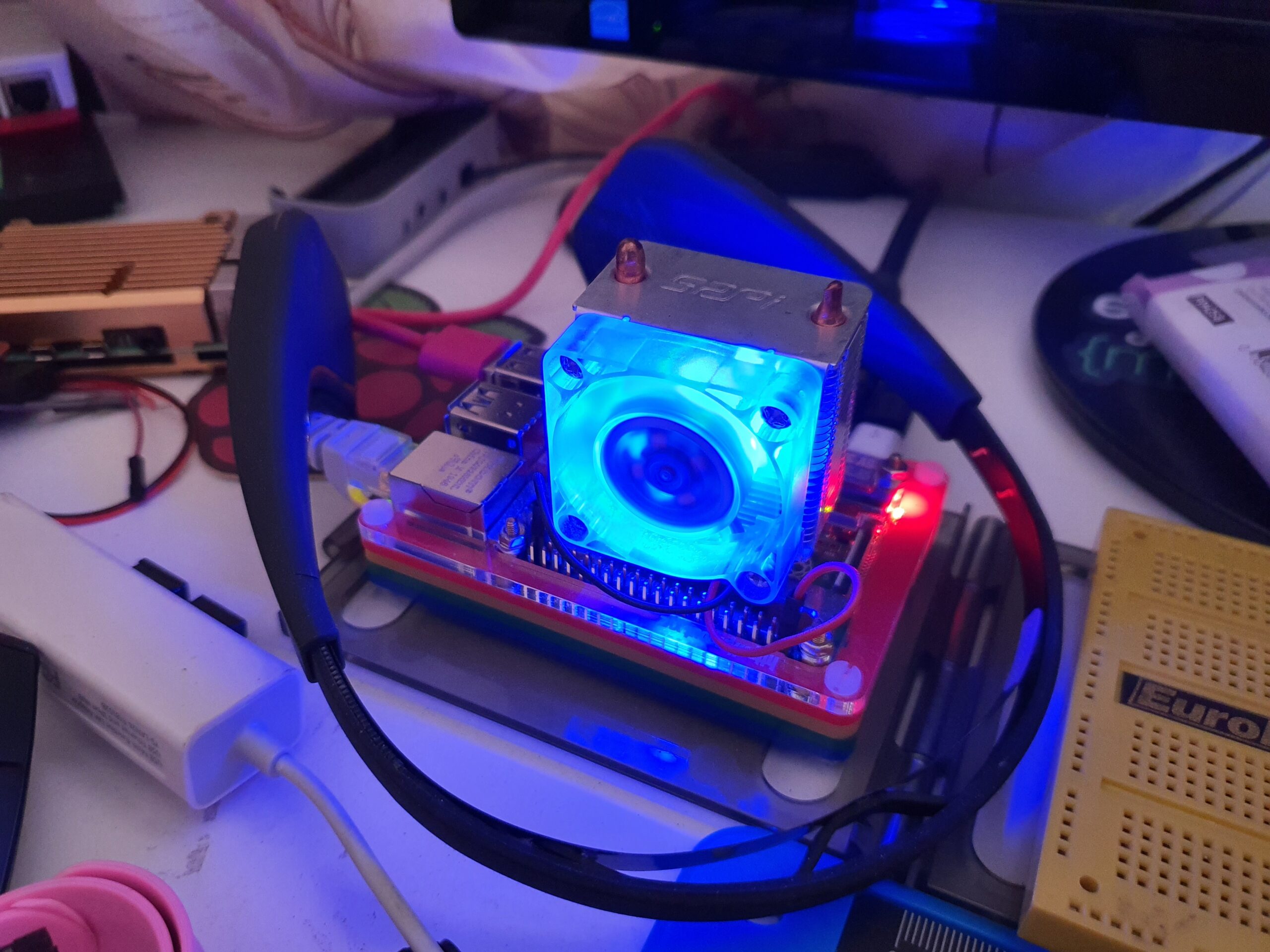

Michael used a Raspberry Pi 4 for the Mind Patterning project “because it allows lots of applications to run simultaneously.” The Bluetooth setup required for Raspberry Pi to import data from the headset turned out to be one of the trickier aspects of the build since the latter is really designed to work with iOS or Android.

“Using Raspberry Pi was essential for the TensorFlow tech required for training a neural network on the recorded EEG data,” he explains. “The code is where the design and development was [see his GitHub repo]. I used some libraries from elsewhere in order to get the EEG data logged and accessed. So many people use Raspberry Pi and it ensures that there is always support and information out there to learn from and assist,” he notes.

Raspberry Pi 4’s flexibility and processing power meant Michael needed little else to realise his project.“It has so much hardware on board, including the power for the machine learning, which is where the multicore and lots of RAM really helped,” he says.

Trial and error

“Initial testing of the model training and inference was done with the PipelineRunnerTest.py file,” explains Michael. “This creates artificial sets of training and neural network testing data. It calls CSV preprocessing (which loads and trains the model), then runs that against the test data.”

This approach allowed him to see quickly how well the model would work if given real-world data, and to make adjustments. “I was trying to get the raw EEG sensor data at first, but then realised I needed to get the data processed into alpha/beta/theta wave data before passing to the neural net.”

Michael hopes to develop the project to read more mind states, possibly even emotions, and sees future potential for the mind-patterning idea in simulating human responses via a neural network.

“With more tweaking and more data, it could be used to interact with the hardware without having to manually press buttons, but I’m sure Elon Musk’s Neuralink is going to be far, far more effective than anything I could ever do,” he says.
