Walking T-Rex
By Poppy Mosbacher. Posted
This article was originally published as part of HackSpace magazine, which has since been incorporated into Raspberry Pi Official Magazine.

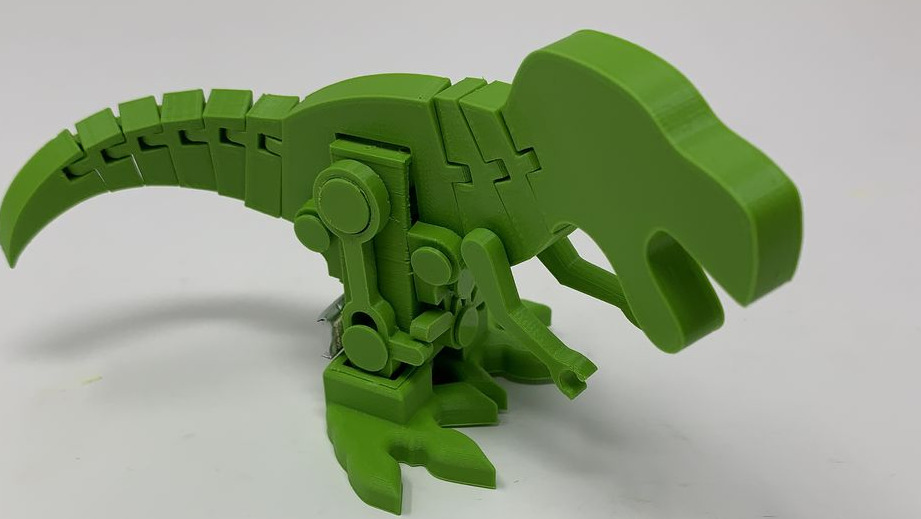

Greg Zumwalt is a prolific 3D designer, having published over 100 Instructables. A new addition to the collection is a miniature dinosaur which swings it's body from side to side as it walks along.
Inspired by the 'pin walker' designs of RobotHut and rick100, Greg set about modeling the dinosaur in Autodesk Fusion 360. The articulated body is printed in one go with an extra 22 parts to make the moving mechanisms.
"This is a high precision print", says Greg. It uses "very small precision 3D printed parts in very tight spaces", but after triming and sanding any rough edges, the moving parts can glide smoothly.
Ask an Engineer – exclusive advice from the brains behind Raspberry Pi
Instructions to make the dinosaur are available here.
Greg's earlier design for a 3D Printed Spring Motor was featured as one of our Top Projects in Issue 18.
Poppy is a maker and writer. She loves getting tech into the hands of people who do traditional crafts. She is helping set up a makerspace in Devon and was a director of BuildBrighton makerspace.
